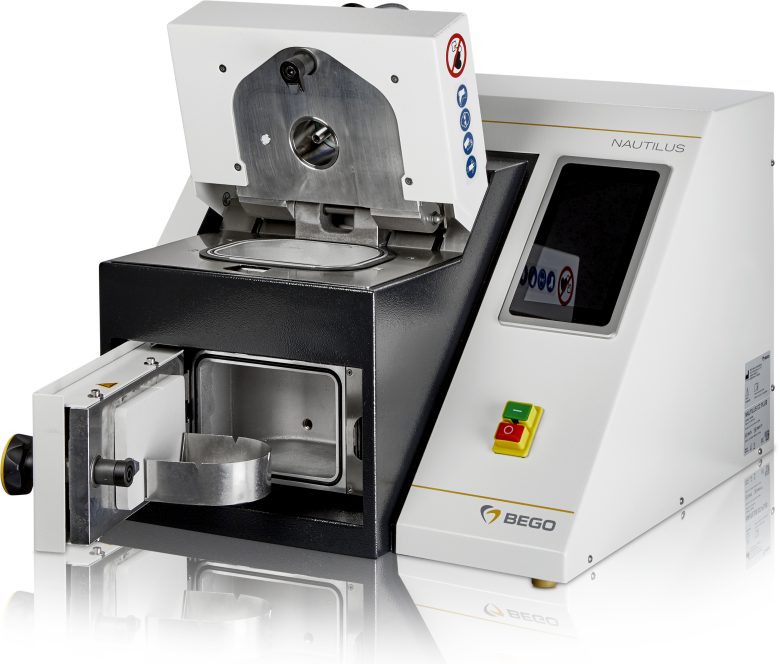

Bego Nautilus® CC Plus with cooling
Bego Nautilus® CC Plus with cooling
Regular price
$35,844.27 USD
Regular price
Sale price
$35,844.27 USD
Unit price
/
per
Couldn't load pickup availability
Nautilus CC is equally suitable for both non-precious and precious metal alloys, as well as partial denture casting. The integrated fully automatic temperature measuring system uses multi-channel temperature measurement to determine the exact temperature of the melt and fully automatically triggers the casting process.
Advantages
- New: Network connection via LAN or WLAN enables access to the integrated casting log archives (up to 1,000 casting logs)
- New: The connection via the service portal* my.Bego.com enables direct remote diagnosis of the device
- Casting point recognition ensures that the cast objects are filled at the temperature recommended by the alloy manufacturer
- Large 7“ touch display with intuitive menu navigation for convenient and easy operation
- High-performance induction heating guarantees short melting cycles, minimises oxidation and thus facilitates subsequent finishing
- Integrated power cooling provides for over 50 casts in a row, even with high ambient temperatures with moulds made of phosphate-bonded investment materials
- Integrated cooling saves water and helps to protect the environment
- Suitable for all commercially available precious metal and non-precious alloys (excluding titanium)
- Compact dimensions and design give the Nautilus CC plus a very small footprint
- Eco mode switches off all unnecessary components in idle mode and reduces operating costs
Nautilus® CC Plus Specifications
| TECHNICAL DATA | |
|---|---|
| Height | 420 mm |
| Height with optical waveguide | 650 mm |
| Width | 600 mm |
| Depth | 670 mm |
| Rated voltage | 230 VAC, 50/60 Hz |
| Power at rated voltage of 230 VAC | 16 A |
| Compressed air connection (Connection thread 1/4‘‘) | at least 5 bar (0.5 [MPa]) |
| Air consumption | approx. 100 l/min |
| Weight | approx. 64 kg |
| SCOPE OF DELIVERY | CONTENTS | PRESENTATION | REF |
|---|---|---|---|
| Nautilus CC plus, 230 VAC, 50/60 Hz | piece | 26475 | |
| Ceramic crucibles (each made of 2 halves) | 4 pieces | pack | 52488 |
| Plastic handles for ceramic crucibles | 2 pieces | pack | 52436 |
| Ceramic handles for ceramic crucibles | 2 pieces | pack | 52467 |
| Graphite ingots | 2 pieces each | piece | 52473 |
| Glass carbon cylinder | 1 piece each | piece | 52468 |
| Forceps | piece | 30002 | |
| Mould holder plate, ceramic | piece | 30259 | |
| Mould holder (ceramic) for sizes 1 and 9 | piece | 12257 | |
| Mould holder (ceramic) for sizes 3 and 6 | piece | 13362 | |
| Mould holder plate (metal grid) for partial denture (25 mm high) | piece | 37618 | |
| Mould holder plate (metal grid) for partial denture (15 mm high) | piece | 10073 | |
| Base socket mould formers, sizes 3, 6 and 9 | 1 piece each | piece | – |
| Partial denture funnel former | pack | 52068 |
