Quatro MedEVAC-A Chairside AirFlow

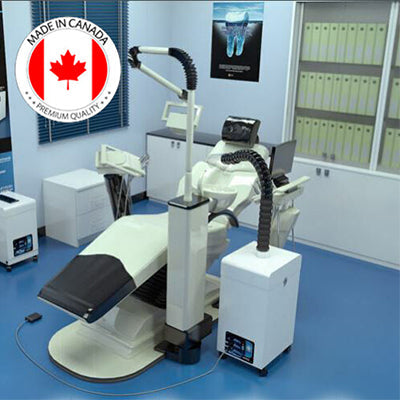

Recommended applications for the Quatro MedEVAC A: Oral aerosol partical collection, chair-side aerosol suction, dental suction, extraoral suction. Ideal for hygiene applications. The MedEVAC A will limit exposure to the operator with collected particles contained within filter bag and HEPA filter. Filter bag features a peel-off adhesive backed cover to seal the filter for disposal.

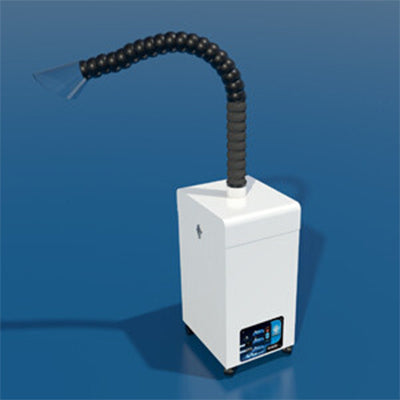

Includes foot switch for remote operation, 8" mouthpiece, 36" long capture arm. The arm is made of a 12" non-flexible support tube, with 24" of flexible length.

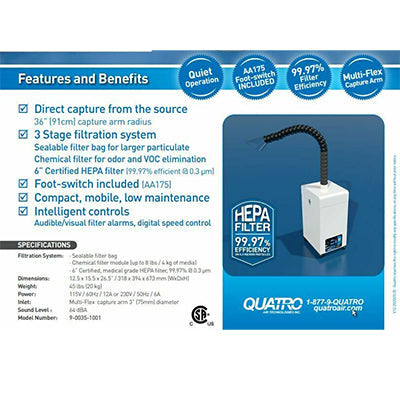

Specifications:

• Operating dimensions (WxDxH): 12.5x15.5x26.5” / 318x394x673 mm
• Operating weight: 60 lbs / 27 kg
• Shipping dimensions: UPS: 18x20x29” / 457x508x737 mm
• Shipping weight: 60 lbs / 29 kg
• Blower free air: 17556 l/min (620 CFM)
• Nominal operating air flow: 4247 l/min (150 CFM)
• Maximum blower pressure: 746 Pa ( 3” w.c.)
• Electrical requirements: 120V, single phase
• Power cord: Medical approved, type SJT
• Current draw: 2A (at 120V)
• Power consumption: 200W
• Digital variable speed control: Yes
• Audible alarms: Yes
• Visual alarms: Yes
• Remote operation ready: Yes, foot-switch included (#AA175)
• Source capture arm: ESD Eafe Flex and Stay, 36” long
• Source capture nozzle: Transparent plexi, 8” diameter
• Filtration system: 2-stage
  • Pre-filter: 2” deep, pleated MERV8 (#F071/BX, box of 6)
  • HEPA filter: 6” deep, individually certified and tested HEPA filter 99.97%* (#F475)
• Quality control: electrical, air flow, mechanical and leak (POA aerosol generator and photometer) testing

Replacement filters & parts

Pre-filter 6-pack: #F071-box

HEPA filter: #F475

Remote operation foot pedal: #AA175
