Quatro MedEVAC-S Chairside HEPA Extraoral Suction

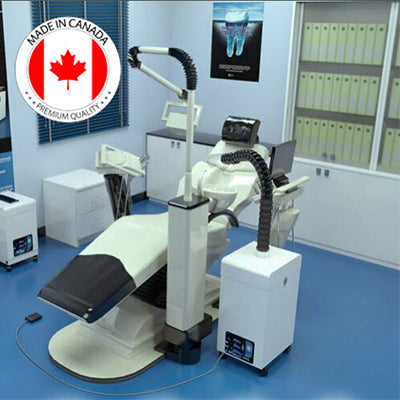

Oral aerosol partical collection, chair-side aerosol suction, dental suction, extraoral suction. Ideal for hygiene applications. The MedEVAC S will limit exposure to the operator with collected particles contained within filter bag and HEPA filter. Filter bag features a peel-off adhesive backed cover to seal the filter for disposal.

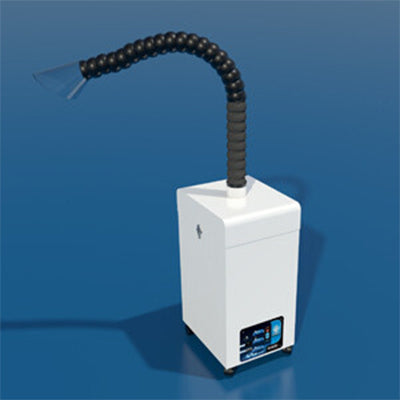

Includes foot switch for remote operation, 8" mouthpiece, 36" long capture arm. The arm is made of a 12" non-flexible support tube, with 24" of flexible length.

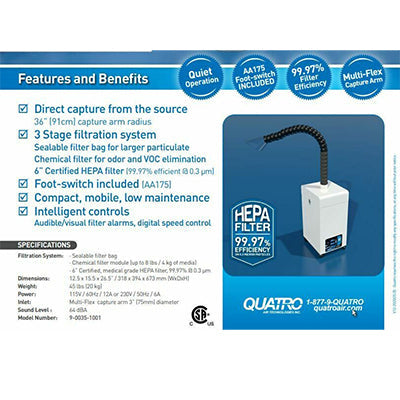

Specifications:

• Operating dimensions (WxDxH): 12.5x15.5x26.5” / 318x394x673 mm
• Operating weight: 70 lbs / 32 kg
• Shipping dimensions: UPS: 18x20x29” / 457x508x737 mm
• Shipping weight: 75 lbs / 34 kg
• Blower free air: 6286 l/min (222 CFM)
• Nominal operating air flow: 5663 l/min (200 CFM)
• Maximum blower pressure: 10 KPa ( 40” w.c.)
• Sound level: 64 dBA
• Electrical requirements: 120V, 15A, single phase dedicated circuit
• Power cord: Medical approved, type SJT
• Current draw: 12A (at 120V)
• Power consumption: 1160W
• Digital variable speed control: Yes
• Audible alarms: Yes
• Visual alarms: Yes
• Remote operation ready: Yes, foot-switch included (#AA175)
• Automatic airflow adjustment (AutoFlow): Yes. Set to ideal speed, motors will maintain airflow despite pressure increase
• Source capture arm: ESD Eafe Flex and Stay, 36” long
• Source capture nozzle: Transparent plexi, 8” diameter, and tappered nozzle
• Filtration system: 3-stage
  • Pre-filter: Sealable bag filter* (#AG259-02, pack of 2)
  • Chemical filter: Standard VOC activated carbon and anti-bacterial KMnO4 impregnated alumina mix (12 lbs /5.5 kg), (#AG372-GPP)**
  • HEPA filter: 6” deep, individually certified and tested HEPA filter 99.97%*** (#F075)
• Quality control: electrical, air flow, mechanical and leak (POA aerosol generator and photometer) testing

* Limits exposure to operator as everything is sealed inside the bag filter with the peel off adhesive backing cover to seal filter for disposal

Order cancellations will incur a 4% fee if not cancelled within the same business day. Orders cancelled after 5 business days will incur a 15% cancellation fee.

** ONLY THE FILTRATION MEDIA REQUIRES REPLACEMENT, not the entire chemical filter assembly. Replacement media: NC-GPP (5 refills), or AG333-GPP (2 refills)

*** All HEPA filters are individually tested and certified to North American standard IEST-RP-CC001: HEPA, European Equivalent EN1822

Replacement filters & parts

Sealable pre-filter: #AG259

HEPA filter: #F475

Chemical filter refill: #AG33-GPP (2 refills) or #NC-GPP (5 refills)

Remote operation foot pedal: #AA175
