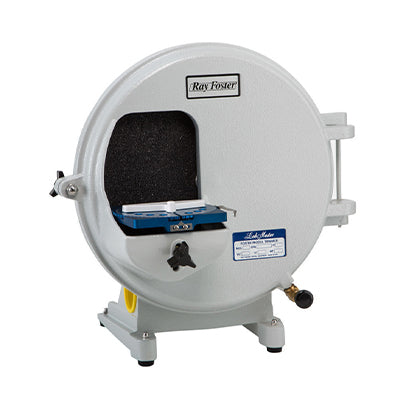

Ray Foster 15" Orthodontic Trimmer

Equipped with the Orthodontic Angulating Work Table, the Ray Foster 12" Model Trimmer speeds trimming of study models, and produces accurate and attractive results. The Orthodontic Angulating Work Table, made from hardened anodized aluminum for a long, accurate work life, is calibrated for precise positioning and trimming of models. Accessories supplied with the Orthodontic Model Trimmer include Vertisquare, Angle Guide, and 70mm Adjustment Gauge.

Model Mt15

Specifications

• 1/2 HP motor, with 1.25 service factor producing .625 HP actual power
• 12" dia., 1/4" thick grinding wheel
• 5-1/4" wide, 5" high cutting surface
• 17" high, 17" wide, 16" deep
• 115 volt, 60 Hz standard
• 230 volt, 50/60 Hz optional for export
• Net weight 41 lbs, shipping weight - 49 lbs

Optional packages:

MT15A: Trimmer with automatic water valve, water spray attachment, and splash shield

MT15D: Trimmer with diamond wheel

MT15AD: Trimmer with water accessories and diamond wheel
