Ray Foster Variable Speed Alloy Grinder

For 60 years Foster High Speed Alloy Grinders have been providing precise, efficient, and reliable service worldwide. Rugged and comfortable to use, the Foster Alloy Grinder is a proven time saver when it comes to tasks like sprue separating, or finishing and polishing chrome alloy framework.

All models feature a fully adjustable safety shield and light assembly, adjustable working height, and large work area for operator comfort. Each machine is equipped with a precision high-speed automatic spindle, which permits the changing of tools without stopping the motor.

Model AG05: High Speed Grinder with Variable Speed Control

• Fingertip speed control with a front panel mounted potentiometer

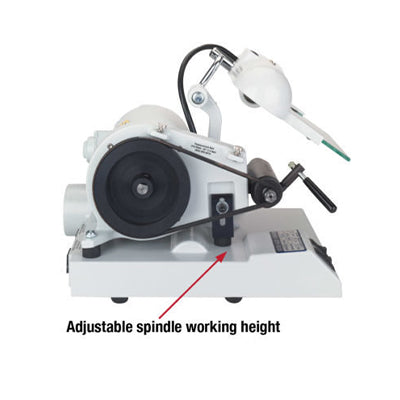

• Adjustable spindle working height
• Heavy duty, high torque 1/4 HP motor in a totally enclosed housing

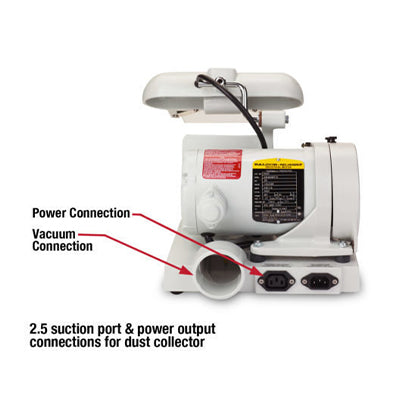

• 2.5” suction port for connection to Ray Foster Cyclone Dust Collector or other dust collector system
• Power output connection for automatic on/off of dust collector
• New compact design
• Motor is UL-recognized and CSA-certified for electrical safety

Specifications

• Width 10.25”, Length 11.75”, Height 11”
• 115 volt 50/60 Hz standard
• 230 volt 50/60 Hz optional for export
• Net weight 28 lbs., shipping weight 31 lbs.
