Renfert Mobiloscope S LED 20x Microscope

Renfert Mobiloscope S LED 20x Microscope

$1,943.70 USD
$2,046.00 USD $1,943.70 USD
Sale Sold out
Renfert Mobiloskop S Microscope

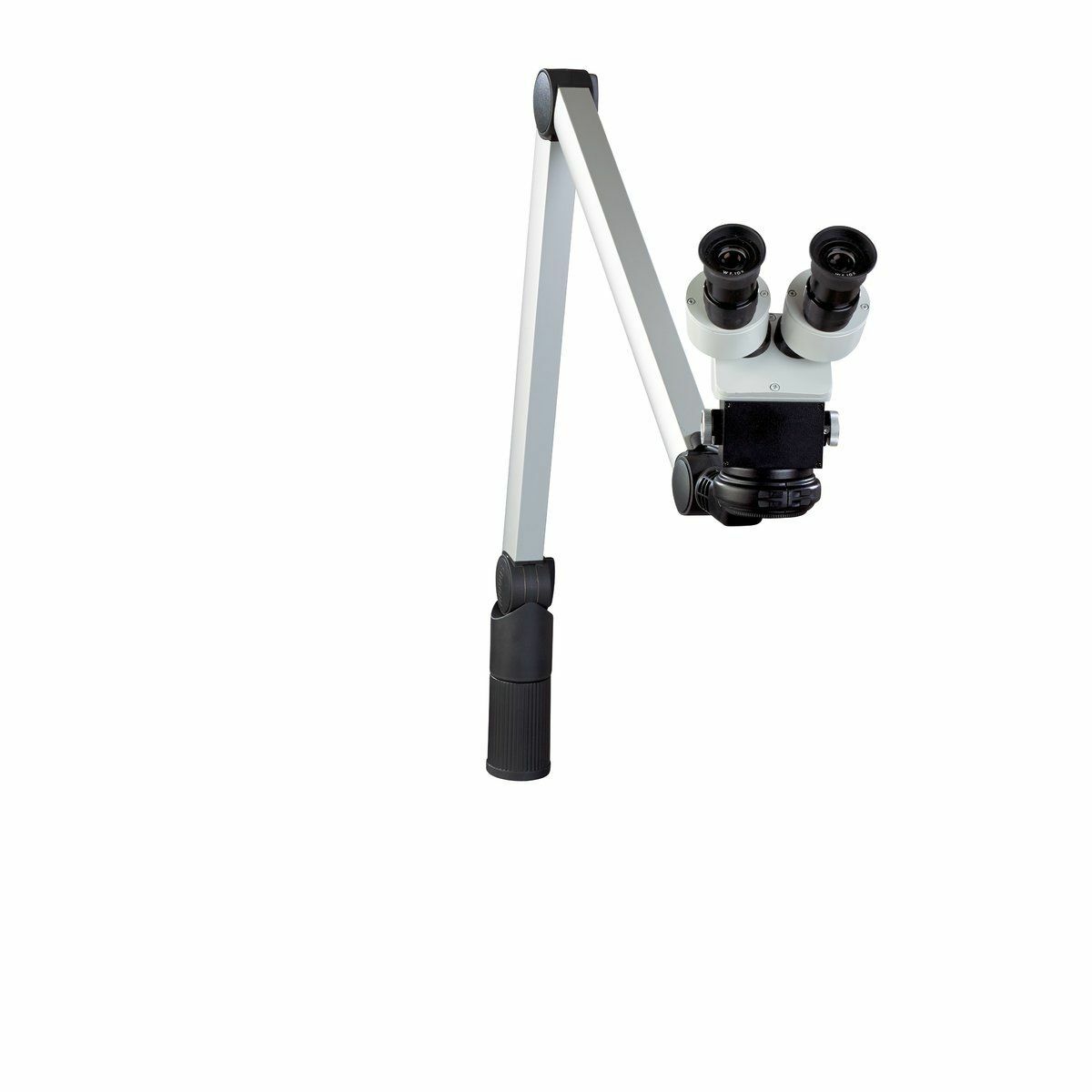

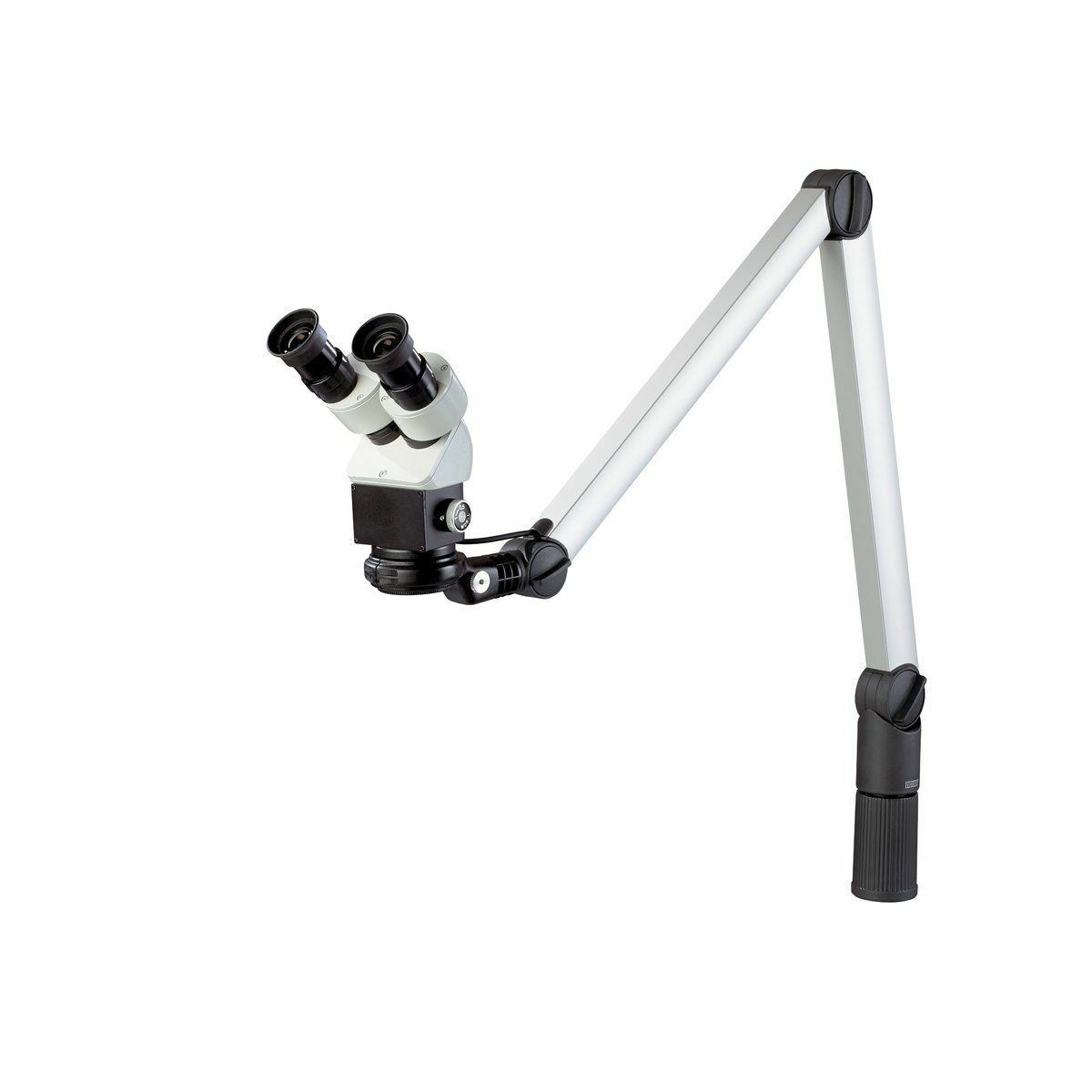

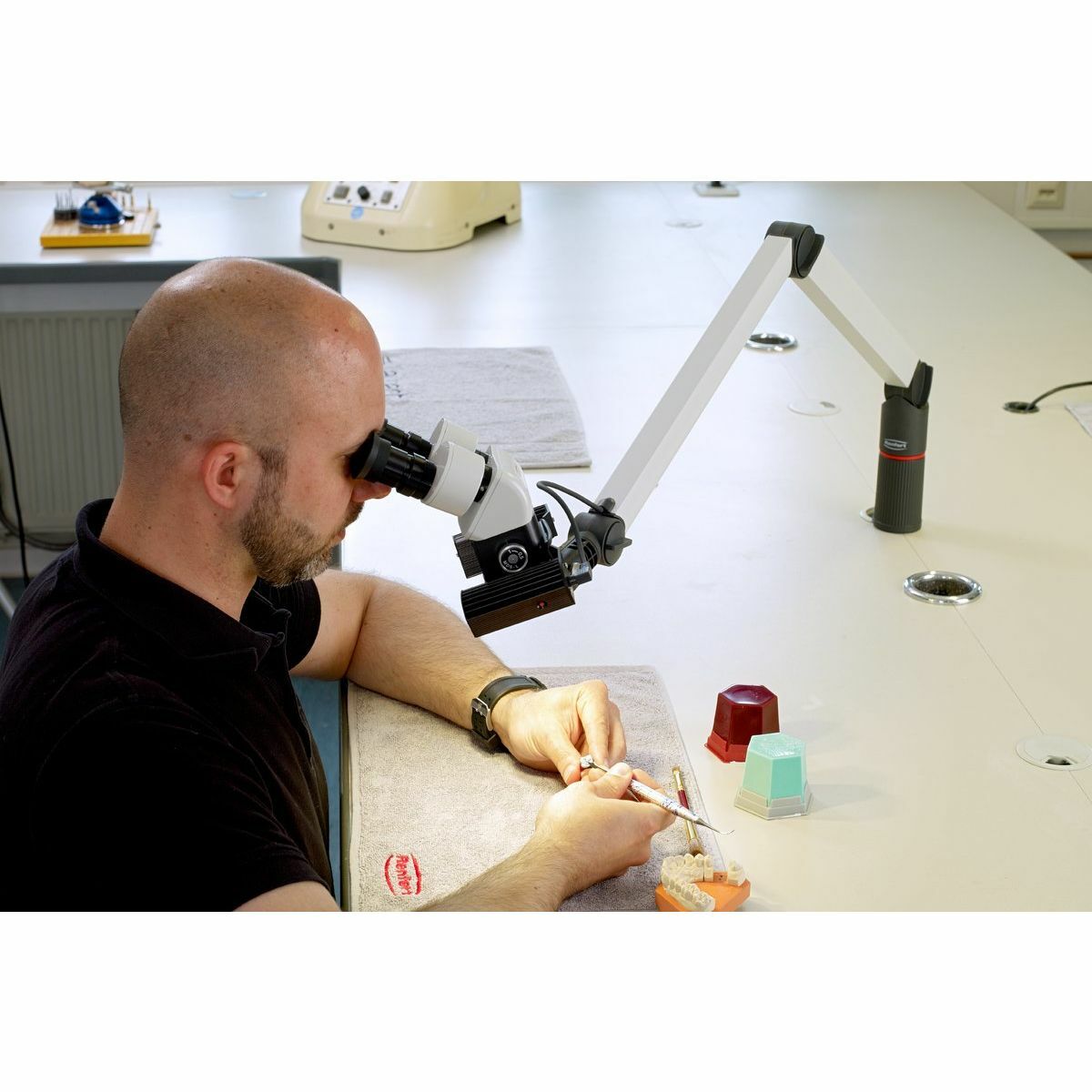

One microscope for up to 4 workplaces! The 360° swivel-mounted support arm allows a single microscope to be utilized from several workplaces for detail control and precision work.

Advantages

  • 10 and 20 times magnification provides maximum precision.
  • Distortion-free coupled with uniform sharpness in the entire viewing field.
  • Large viewing field with a high depth of focus and marginal detail.

Details

  • Ergonomic and relaxed seating position thanks to the high working position of 150 mm.
  • Dioptric compensation enables a three-dimensional view.

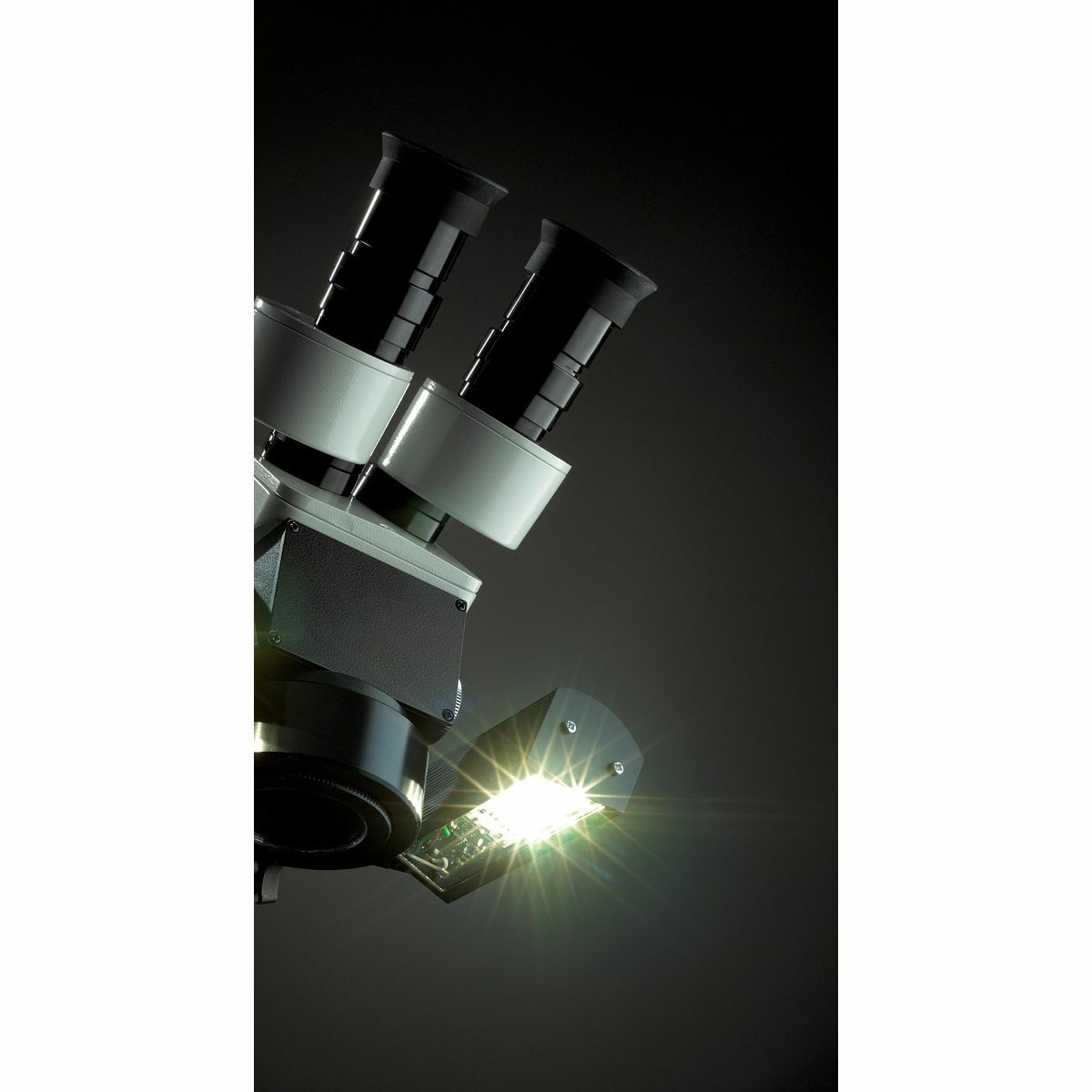

  • Includes: LED-illumination with 9,000 Lux/18 white light LEDs.

Scope of delivery: Mobiloskop head, LED kit, support arm (incl. stand with universal clamp)

Article number

22005020

Magnification

10 x | 20 x

Light beam (angled)

45 °

Field of vision Ø

44 mm (5 x) | 22 mm (10 x)
1.734 " (5 x) | 0.867 " (10 x)

Focussing depth

22 mm (5 x) | 10 mm (10 x)
0.867 " (5 x) | 0.349 " (10 x)

Working distance

150 mm
5.9 "

Action radius of swivel arm

850 mm
33.5 "

Table top thickness (with universal clamp)

18–74 mm
0.71–2.92 "

Table top thickness (with screw clamp, max.)

26 mm
1.02 "

Weight (incl. swivel arm)

~1,8 kg
~4 lbs
